GL2013Z

Rigid Structure That Handles Heavy Loads

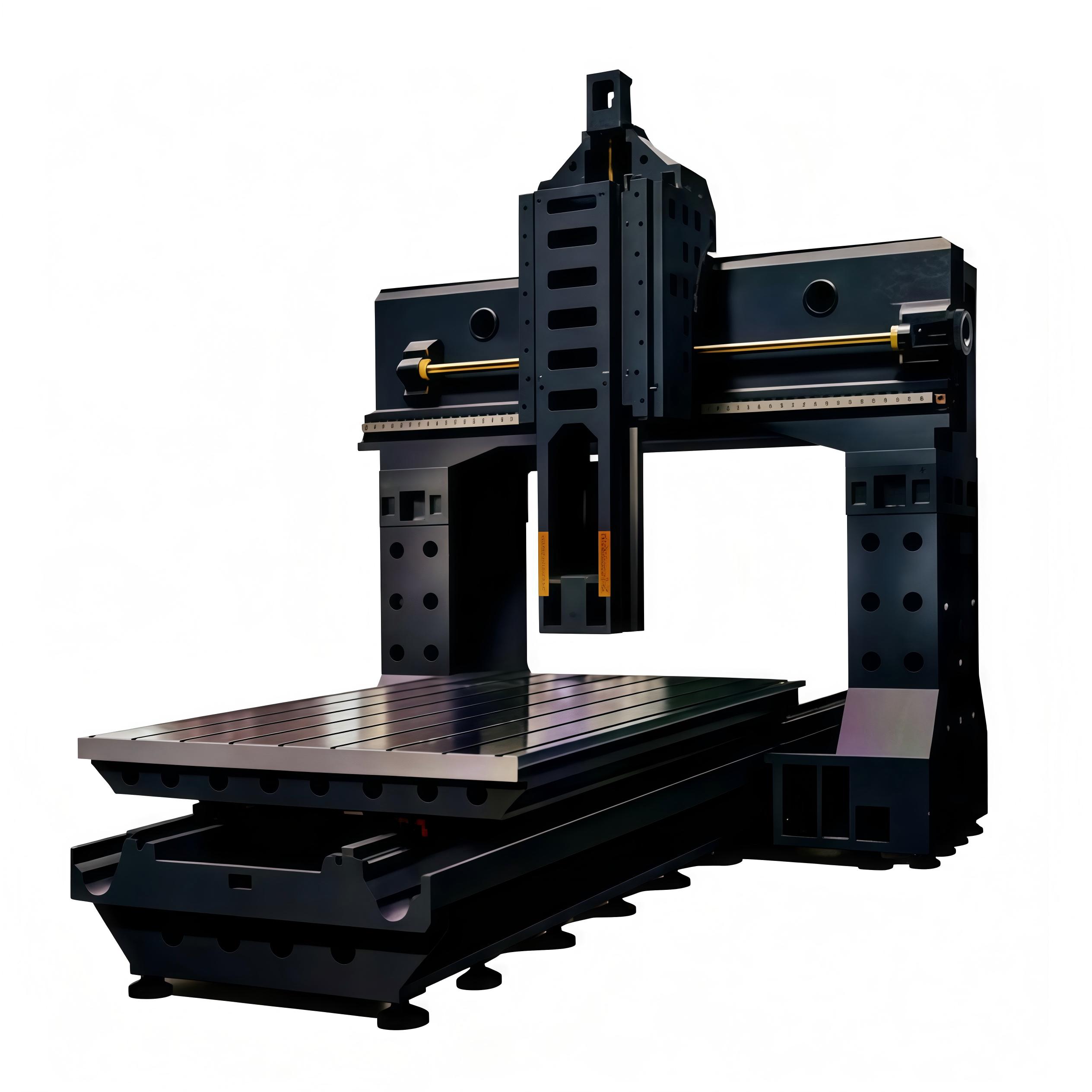

The gantry‑type structure integrates beam, column, and bed into a single, rigid casting. Designed to withstand high cutting forces and heavy workpiece weights, it minimizes vibration and deformation during machining, ensuring consistent accuracy and surface quality – ideal for high‑speed, high‑precision processing of large and heavy workpieces.

Large Work Envelope, Multi‑Process in One Setup

With generous X/Y/Z travel and a spacious work area, the machine accommodates large parts. Multi‑axis capability allows milling, boring, drilling, and tapping to be completed in a single clamping – reducing handling time and cumulative errors. Particularly well‑suited for aerospace structural parts, marine propulsion components, automotive body dies, and large machinery parts.

High‑Rigidity Spindle Built for Heavy Cutting

The spindle is equipped with high‑precision, high‑rigidity bearings and an advanced lubrication and cooling system. It reliably withstands the high radial and axial forces generated during heavy cutting, minimizing spindle deformation and vibration to ensure consistent cutting accuracy and surface finish.

Z‑Axis Hardened Guideway – Rigidity and Accuracy in One

The Z‑axis features a hardened guideway with thick, rigid guide surfaces that provide stable support for the spindle head under heavy loads. Made from high‑quality cast iron and specially heat‑treated, it offers excellent wear resistance – maintaining accuracy over years of continuous use and significantly extending the machine‘s service life.

Optimized Y‑Axis Configuration for Smooth Motion

The Y‑axis is equipped with 5 evenly distributed sliders, greatly increasing load capacity and stability. This configuration handles off‑center loads and impact forces from large, heavy workpieces with ease, ensuring smooth motion and reliable positioning accuracy – even during high‑speed cutting. The result is improved part quality and consistent repeatability.
