U480-BT40-150

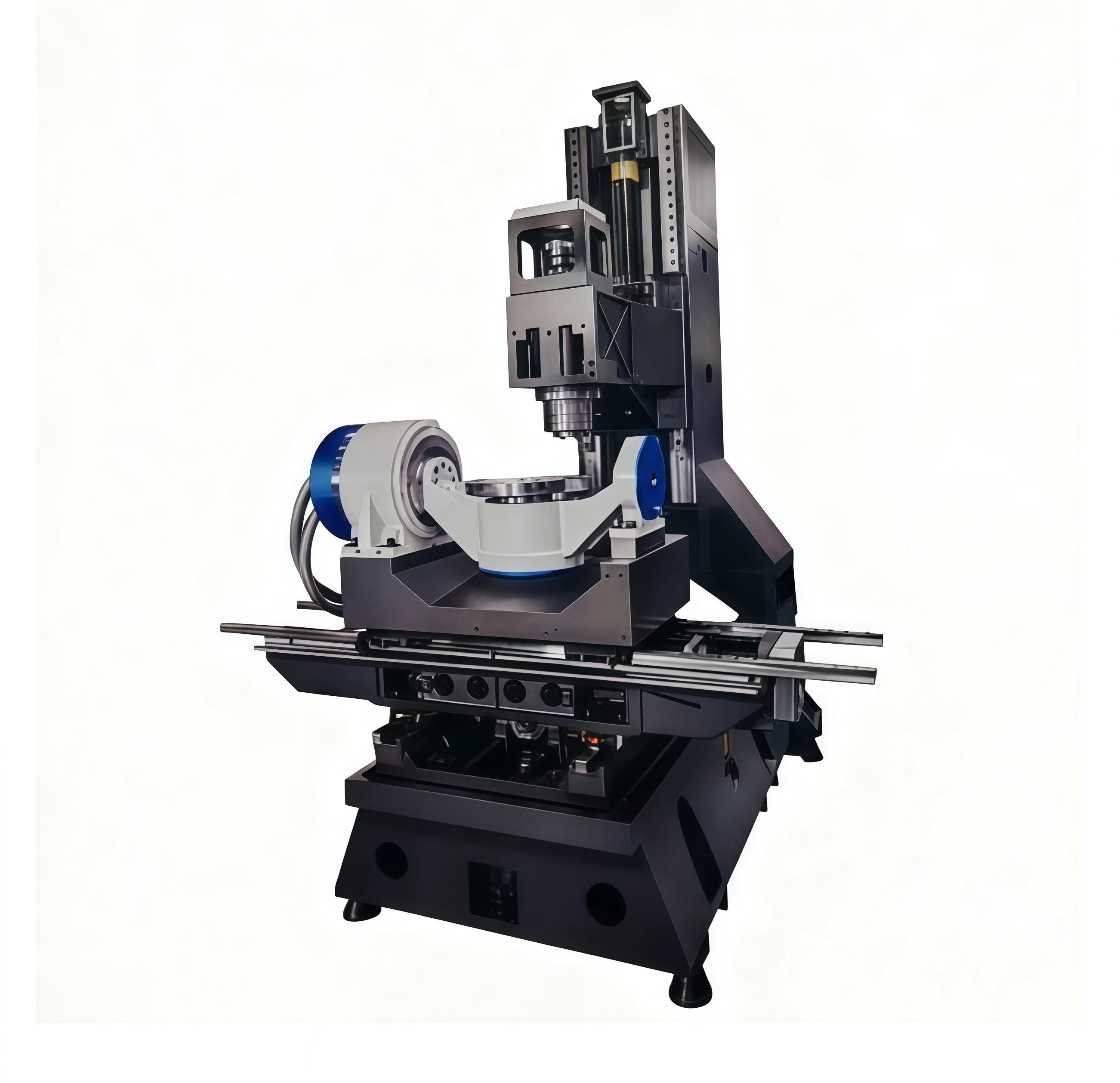

The U480 5-Axis Machining Center is a vertical 5-axis machine designed for complex surface and high-precision part machining. Equipped with A and C rotary axes in addition to X, Y, Z linear axes, it enables multi-face machining in a single setup. Featuring a high-precision cradle-type 5-axis table with direct-drive DD motors and high-resolution encoders, it delivers positioning accuracy of 10 arc-seconds and repeatability of 4 arc-seconds. The extended Y-axis travel accommodates large workpieces. Ideal for aerospace impellers/blades, precision molds, medical devices, and new energy equipment.
- Product ID
- #-2103
- Category
- Five-Axis Machining Center
Description
Five Axes. One Setup. Complex Surfaces Made Simple.
The U480 vertical 5-axis machining center adds A and C rotary axes to the standard X, Y, Z linear axes, allowing the tool to approach the workpiece from multiple angles and orientations in a single clamping. Parts that are difficult or impossible on conventional 3-axis machines – impellers, blades, propellers, precision mold cores – are completed in one setup, without repositioning errors.
Precision Driven by High-Performance Motion Control
Equipped with a premium cradle-type 5-axis table and direct-drive DD motors with high-resolution encoders, the U480 delivers precise position and angle measurement. Repeatability is stable and reliable: positioning accuracy of 10 arc-seconds, repeatability of 4 arc-seconds – meeting the stringent dimensional consistency requirements of aerospace, medical, and high-end mold industries.
One Machine, Wide Material Versatility
Aluminum, steel, titanium alloys, nickel-based superalloys – the U480 handles a broad range of metal materials with consistent performance. Carbon fiber and engineering plastics are also well within its capability. Whether you are machining aerospace superalloys or precision medical components, the U480 delivers.
Extended Y-Axis Travel for Larger Parts
The Y-axis travel has been lengthened to accommodate larger workpieces and provide greater clearance for optimized tool path planning. Molds, large automotive structural parts, aerospace thin-walled components – 5-axis machining for large, complex parts is now well within reach.
Technical Specification
| Item | Parameter | Unit |
|---|---|---|
| 5‑Axis | ||
| T‑Slot | 12H7 | mm |
| C‑Axis Table Diameter | 320 | mm |
| A/C‑Axis Rated Torque | 406/122 | Nm |
| A/C‑Axis Rated Speed | 50/100 | rpm |
| A‑Axis Tilt Angle | ±110 | ° |
| 5‑Axis Unit Weight | 240 | kg |
| 5‑Axis Max. Load Capacity | 120 | kg |
| Spindle Nose to 5‑Axis Table Surface | 80-630 | mm |
| Travel Range | ||
| X‑Axis Travel | 550 | mm |
| Y‑Axis Travel | 600 | mm |
| Z‑Axis Travel | 550 | mm |
| Spindle Center to Column | 540 | mm |
| Spindle | ||
| Spindle Type | Direct‑Drive | -- |
| Spindle Speed | 12000 | rpm |
| Feed | ||
| Cutting Feed Rate | 5 - 10000 | mm/min |
| X‑Axis Rapid Traverse | 36 | m/min |
| Y‑Axis Rapid Traverse | 36 | m/min |
| Z‑Axis Rapid Traverse | 36 | m/min |
| Tool Magazine (Optional) | ||
| Tool Magazine Capacity | 24T | pcs |
| Max. Tool Diameter(Adjacent Empty) | 80 (125) | mm |
| Max. Tool Length | 300 | mm |
| Max. Tool Weight | 8 | kg |
| Tool Change Time | 1.6 | sec |
| Recommended Servo Motor (X/Y/Z) | 18.6Nm/18.6Nm/28.4Nm | |
| Recommended Spindle Motor | 15KW | |
| Recommended Drive for A/C‑Axis | 5KW/2KW | |
| Accuracy | ||
| Positioning Accuracy (X/Y/Z) | ±0.005 / 300 | mm |
| Repeatability (X/Y/Z) | ±0.003 / 300 | mm |
| Positioning Accuracy (A/C) | ±8/ ±5 | sec |
| Repeatability (A/C) | 4 | sec |
| Air Supply Requirement | ||
| Required Air Pressure | 6 | kgf/cm² |
| Required Air Flow | 0.15 | m³/min |
| Weight | ||
| Machine Weight (Excluding External Sheet Metal) | 3500 | kg |
